Waste to Engery Plant Overhead Crane

capacity(t): 5-50

lifting height(m): 6-30

working class: A7

power supply: 380v-50Hz-3p

span(m): 10.5-31.5


Share With:
Product Introduction

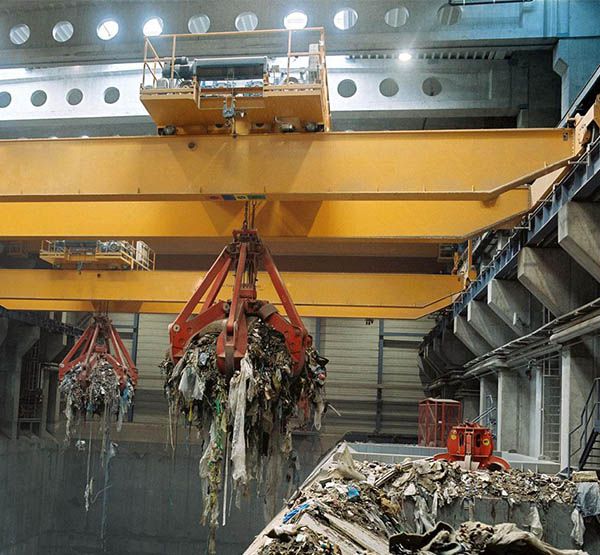

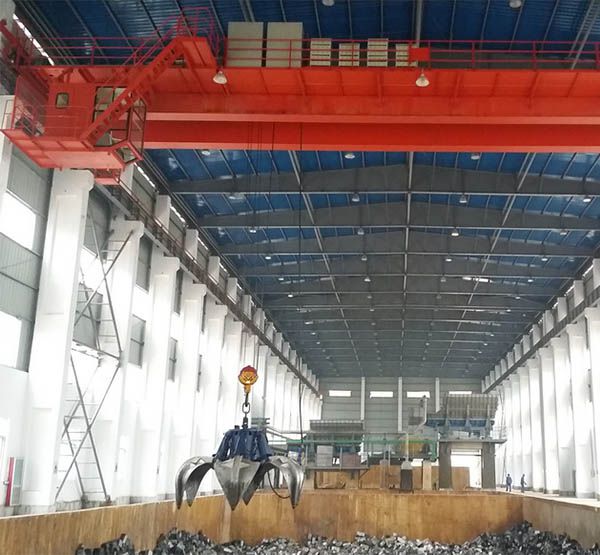

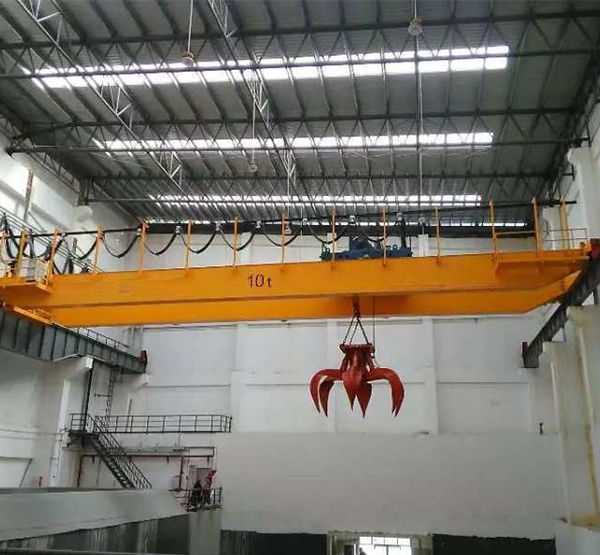

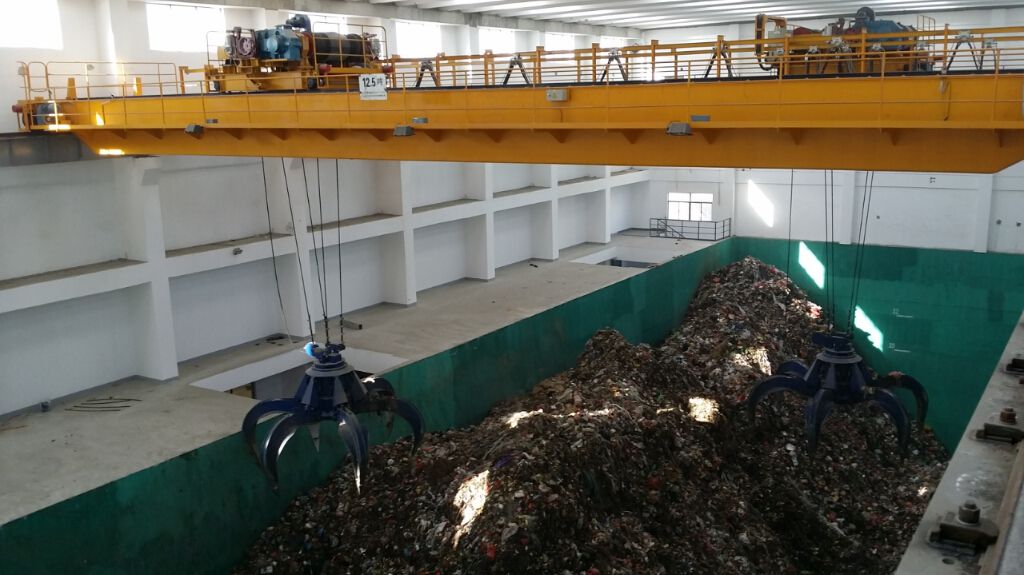

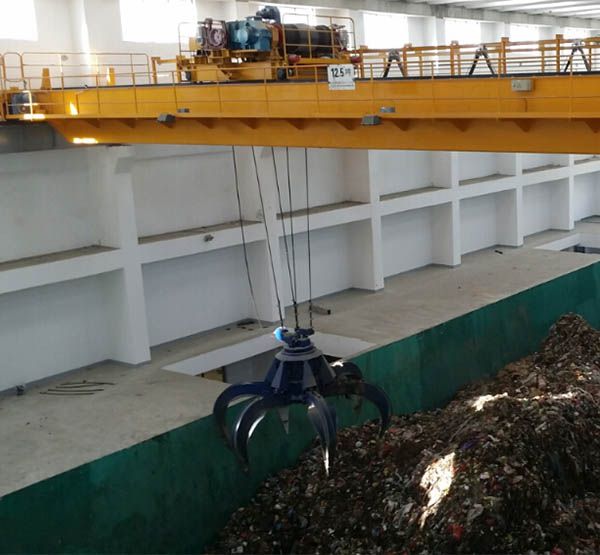

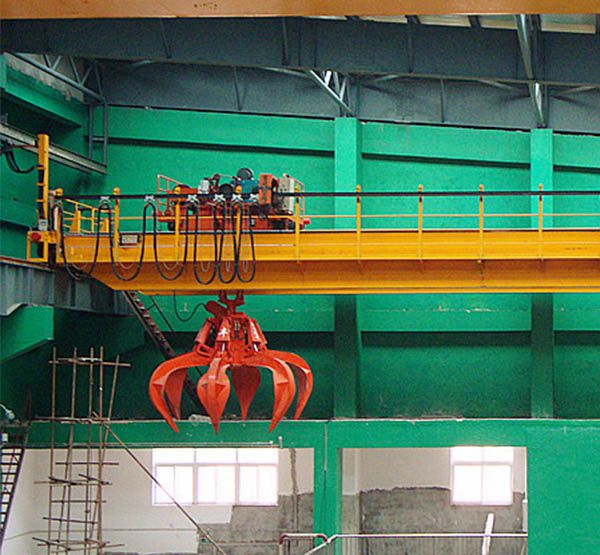

Rubbish grab crane is the key device used in the garbage feed system of different kinds of Garbage-cremation power plant in modern city. It is located at the top of garbage storing pit, and is mainly used for operation of feeding, conveying, mixing, fetching and weighting of the garbage. The garbage grab crane manufactured by our company can implement lifting and conveying strictly to ensure normal work of garbage cremation power plant. The crane can be controlled by hand, semi automatically or automatically.
Signed the strategy partnership with DEMAG which is the famous crane brand in the world.For the garbage grab overhead crane,our orientation is the new type European crane.
Product Advantages
1.Main girder
With DEMAG’s technology; materials adopt Q345B;Light self weight.Welded by the auto welding machine, and checked by the non destructive inspection.
2.End carriage
Materials adopts Q345B; One time processing;Equiped wheels,buffer and keep rail equipment. Wheels adopt 65Mn quenched processing can achieve 6300 Hours working life.
3.The driver system of trolley and crane
Adopt “three in one” driving unit which the brand is SEW/Nord. Can work in the harsh environment.The braker with manual switch, the crane can be moved when power off by manual.
4.Lifting mechanism
The lifting mechanism is the most importment part of the crane. The control mode can be manual, semi auto, auto. Auto mode can compete fetch garbage, pile garbage and mix garbage the whole procedure.
5.Power supply
The trolley adopt the towing chain which is made of indudtrial plastic,anti corrosion,light self weight reduce the driven power, can travel long distance even with load. And with beautiful outlook.
 Product Features
