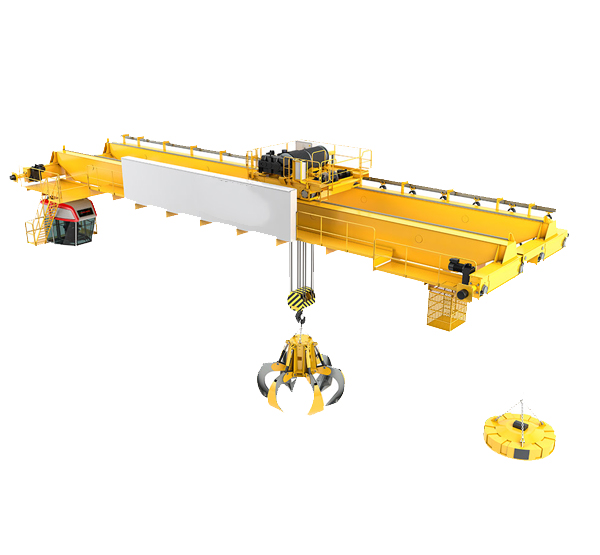

New Generation Scrap Grab Overhead Crane

capacity(t): 5-20

lifting height(m): 6-30

working class: A5/A6/A7

power supply: 380v-50Hz-3p

span(m): 10.5-31.5

EMAIL ME CHAT NOW OUR SKYPE WHATS APP

Share With:
Scrap Grab Overhead Crane
Grab crane is equipped with grab bucket and hoisting machinery, widely used in port, dock, station yard, mine loading various aspects such as bulk, logs, minerals, coal, ballast, conditions, etc.
Grab crane is a kind of automatic picking up machinery, its fetching and material movement is discharged by the driver's operation, do not need to support staff, and thus to avoid the heavy labor of workers, save the auxiliary work time, greatly improving the efficiency of loading and unloading. Grab crane can be divided into bridge type grab crane, gantry grab crane.

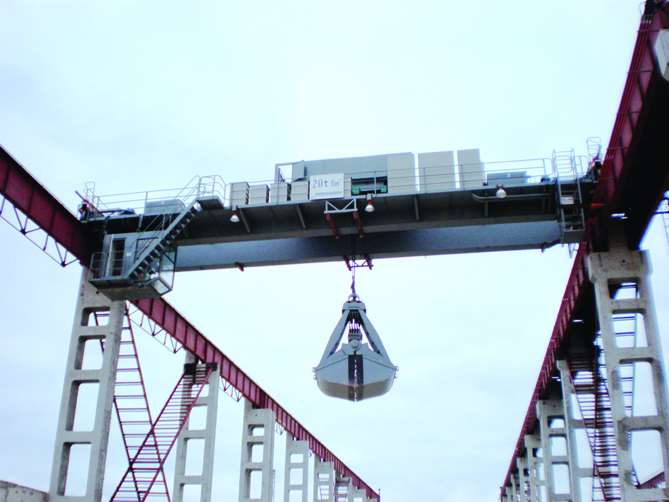

1.Clamshell grab crane
Applicable to the port, dock, station yard, mine loading various aspects such as bulk, minerals, coal, ballast, conditions, etc.,

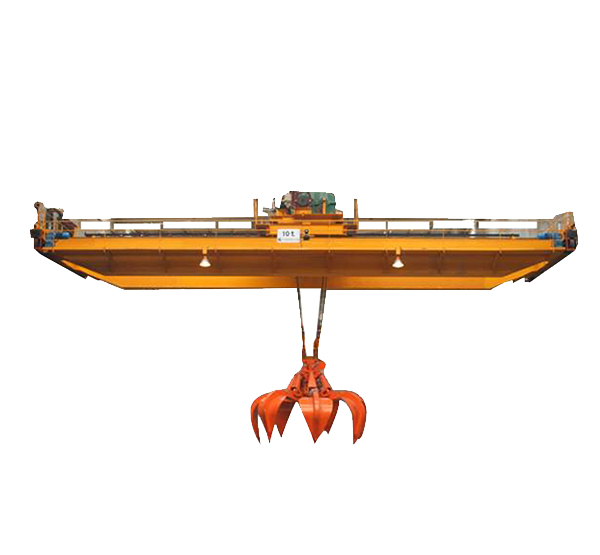

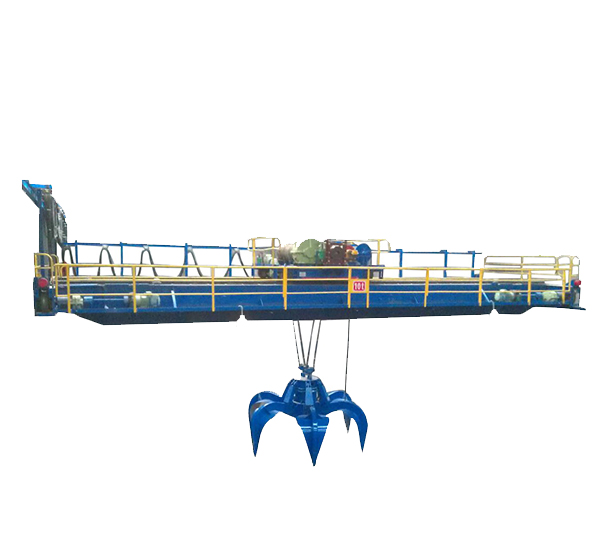

2.The orange peel type grab crane
Suitable for steel scrap grab and refined work, a large amount of waste, waste landfill and construction sites torpedo, loading and unloading and handling work, automotive recycling field, the collapse of torpedo and recycling, bucket tooth can be replaced, and high hardness, wear resistant steel, to ensure that the service life is long; Valve shell can choose according to different work environment; There are whole closed type valve shell, semi-closure type valve shell, valve shell and narrow width side lobe shell.

Product Features
Liting Capacity t 5 10 16 20
Max.Lifting Height   m 20 18 22 26
Span  m 10.5-31.5
Working System   A5-A7
Speed  Trolley  Hoisting m/min 40.1 40.7 41.8 48.6
Travelling 44.6 45.7 43.2 43.2
Bridge travelling 93.7-114.4 112.5-101 98-87.3 87.3
Weight Trolley   5.2/5.9 8.2/9.1 14.8/15.9 19.3/20.4
Total Indoor 19.9-41.3 26.5-50.4 47.3-67.9 56.1-75.6
Outdoor 20.7-42.1 27.4-51.2 48.5-69 57.3-76.8
Grab Volume   m 3 2.5-0.75 5-1.5 8-2.5 10--3
Dead weight   kg 2632-2546 4800-4793 7841-8305 9812-10123
Rail recommended 43kg/m,   QU70
Power Source 3Phase  AC    380V   50HZ (As your demand)
