LX Single Girder Under Hung Bridge Crane with Hoist

capacity(t): 5-20

lifting height(m): 6-30

working class: A3~A4

power supply: 380v-50Hz-3p

span(m): 10.5-31.5

EMAIL ME CHAT NOW OUR SKYPE WHATS APP

Share With:
Henan Mine Imp Exp Co., Ltd is one of Chinese leading manufacturers of many kinds’ cranes. Such as overhead Crane, gantry crane, European crane, tire rubber crane, metallurgy crane, portal crane, jib crane, electric hoist, grab bucket, etc. Welcome to Changyuan to visit our factory anytime!

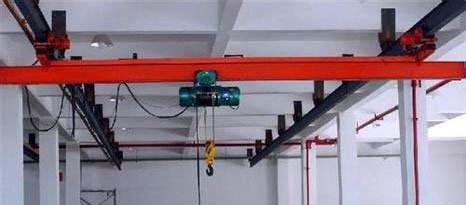

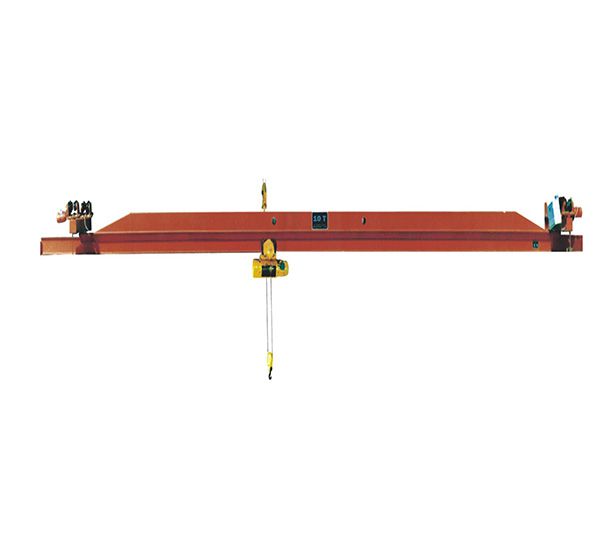

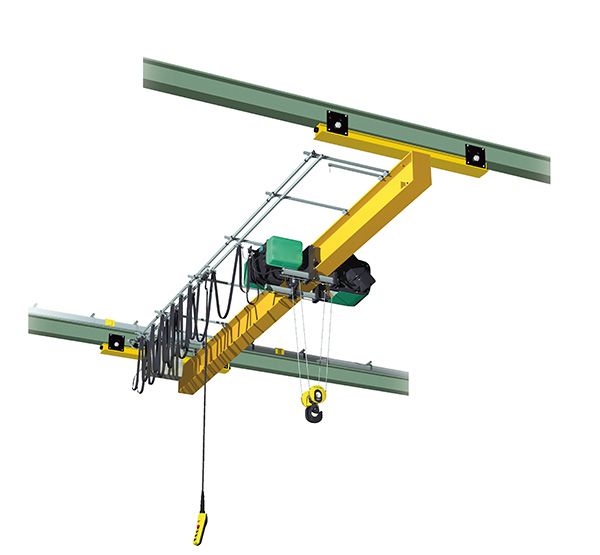

Single girder under hung bridge crane is composed of main girder, end girder, electric hoist, electrical system and other crane parts. It is widely used in factory, warehouses, and assembly sites and so on. It can transport goods quickly and timely by hook or other devices. It’s indispensable equipment to realize mechanization and automation in produce procedure and ease heavy physical labor and improve working efficiency in factory. Single girder under hung bridge crane has many advantages, such as no pollution, safety, delicate operation, strong rigidity and so on.
Using Condition of Single girder under hung bridge crane
Single girder under hung bridge crane should be used in environment such as no fire, no corrosive media and no explosive danger. The proper working temperature is -25°C ~+40°C, and wetness is lower than 85%. Its working duty is A3-A8.
Safety Features of Single girder under hung bridge crane
1. Overload protection: If the material is heavier than the capacity, the crane will give a sharp warning.
2. Emergency brake: If the overhead crane operator encounters emergency situation, we could start the emergency brake system to protect operator and other goods.
3. Control Method: Room control or remote control to protect overhead crane operator.
4. Main lifting motor: With thermal protection and currency protection.
