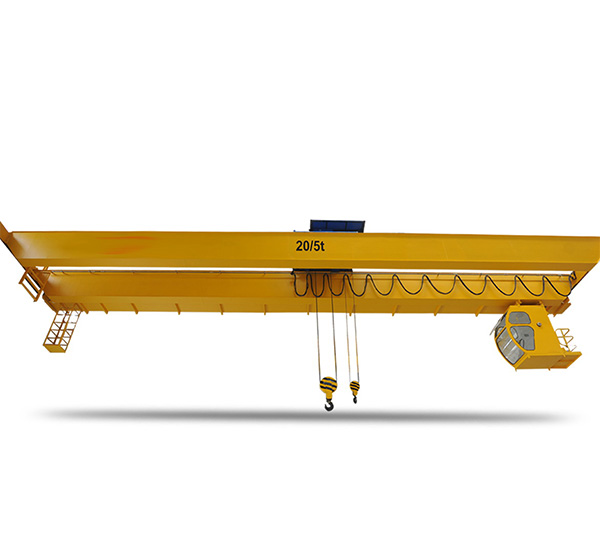

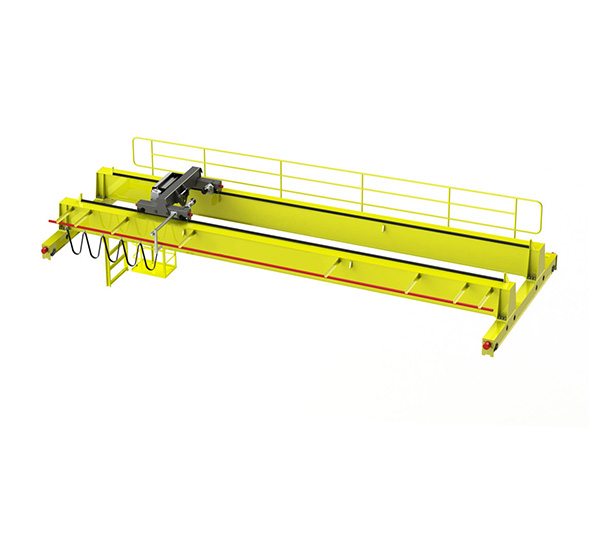

LH Double Girder Electric Hoist Crane referred to as "LH" with following special points: electric hoist as a lifting mechanism, the bridge with partial rail box beam, using "three in one" transmission as the crane and trolley travelling mechanism, cable conduction, the main beam and end beams linked by detachable bolts.
"LH" is light weight,small size, simple structure,economical and practical, transport convenience.It is suitable for light and medium level mechanical workshop, warehouse, yard, maintenance of hydropower station,as the tool to finish assembling and loading and unloading work.
Rated lifting capacity:5t,8t,10t,12.5t,16/3.2t,20/5t,32/8t,32/10t and so on;
Span:7.5m.10.5m.13.5m.16.5m.19.5m.22.5m.25.5m.28.5m.31.5m and other specifications;
Crane operating form: ground operation, Cab Operation.
1.Double Girder Electric Hoist Crane has the advantages of compact size,low clearance height, light weight,low wheel loading and so on.

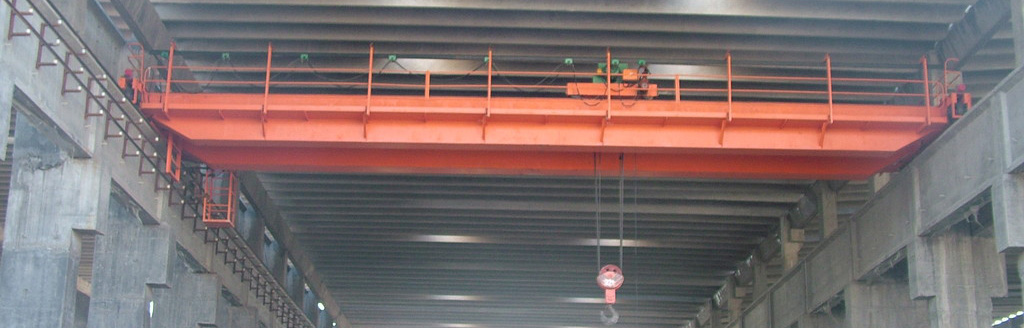

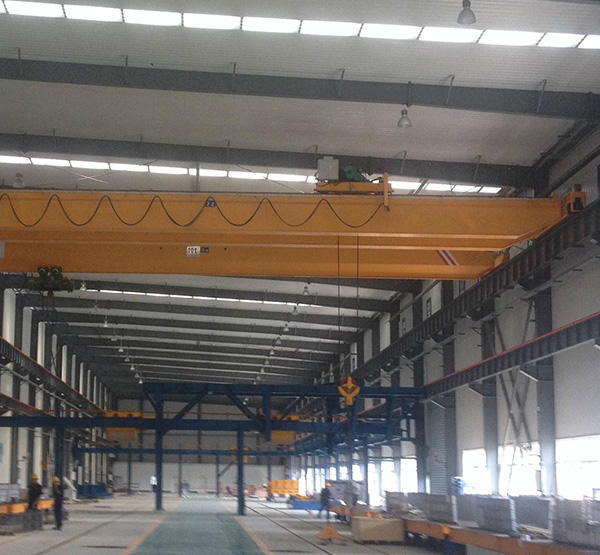

2.Double Girder Electric Hoist Crane is mainly used in mechanical processing workshop,Metallurgical plant auxiliary workshop,warehouse,yard,power plants as the tool to finish the transfer, assembly,maintenance and handling operations.It can also replace the ordinary double-beam bridge crane for the textile industry and food industry production workshop.
3.Double Girder Electric Hoist Crane type with light and intermediate work,the working environment temperature is -25-40℃.No working in flammable,explosive,corrosive media environment.
4.Double Girder Electric Hoist Crane has two types of ground and operating room operation.
