Foundry crane/Metallurgy Crane For Steelmaking

capacity(t): 5~320

lifting height(m): 12~30

working class: A7

power supply: 380v-50Hz-3p

span(m): 10.5-31.5

EMAIL ME CHAT NOW OUR SKYPE WHATS APP

Share With:

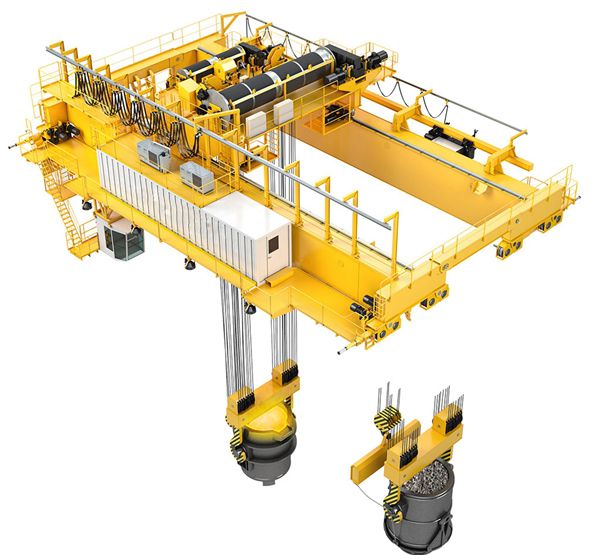

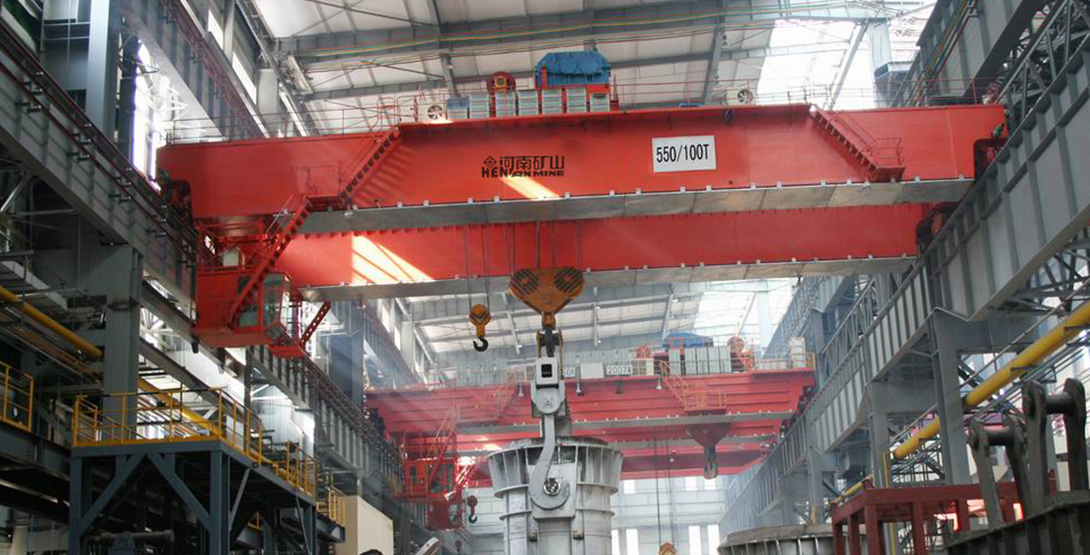

Foundry crane  is one of the main equipments in the continuous casting technology of  steelmaking.

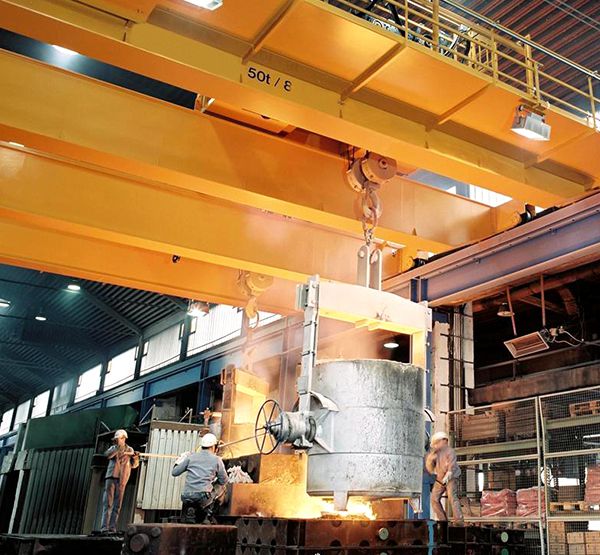

It is mainly used for pouring melted iron from additive bay of converter to converter; lifting molten steel from refining bay to refining furnace or lifting melted steel from molten steel bay to ladle turret of continuous casting machine.
The overall structure of foundry crane has the following forms: two girder and  four girder etc.
Working condition of double girder overhead cast crane
Working temperature: -10~+60°C,
Work class:A7,
Power Source:3ph,380V,50HZ or required.

Safety feature
Weight overload protection device with data displayer,
High quality buffer,
anti-heat layer,
Heat insulation cab
Crane traveling limit switch, Voltage lower protection function,
Emergency stop system,
Current overload protection system and  etc.

Design and construction rules
All the standards which is required for the crane is the Chinese standard of double girder overhead cast crane
Primer and finishing paint
Color: according to your demand.
Average thickness: about 100 microns.

Aftersales service
One year warranty for whole machines.
Providing free quick-wear part.
Low charge for continue maintenance when warranty is expired.
Exclusive engineer support at any time.
We can provide free training to end-users.
lifting weight t 16/3.2 20/5
span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
max. lifting height main hook m 16 12
auxiliary hook m 18 14
Speed main m/min 10.7 9.8
auxiliary 14.6 15.5
trolley travelling 44.6 44.6
crane travelling 76 89 76 89
motor main hook kw 37 45
auxiliary 11 15
trolley travelling 3.7 3.7
crane travelling 2×7.5 2×11 2×7.5 2×11
weight trolley kg 6780 7439
total weight 21500 23600 26000 30500 32600 37050 40700 44020 22800 25100 27490 31920 35400 39300 42970 46850
max wheel load kn 163 174 187 203 214 227 241 254 195 209 220 244 255 267 282 296
steel track trolley 24 kg/m
crane 43kg/m or QU70
power source   380V  50HZ  3-Phase A.C.  380V  50HZ
