Explosion Proof Single Girder Overhead Crane

capacity(t): 3.2-20

span(m): 10.5-31.5

lifting height(m): 6-30

working class: A3

power supply: 380v-50Hz-3p

EMAIL ME CHAT NOW OUR SKYPE WHATS APP

Share With:

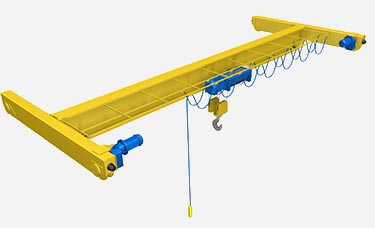

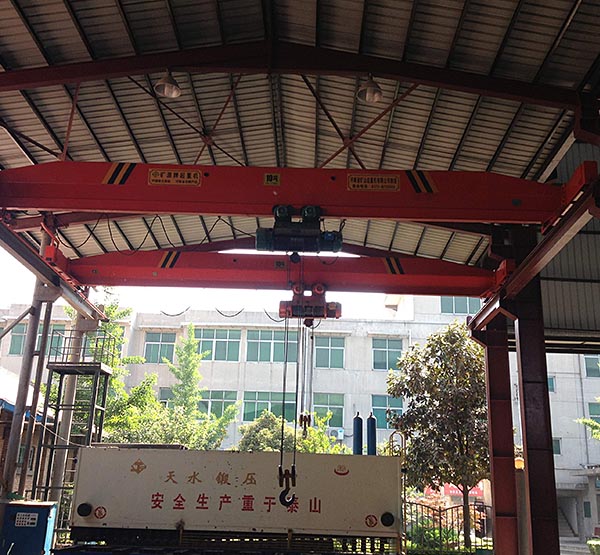

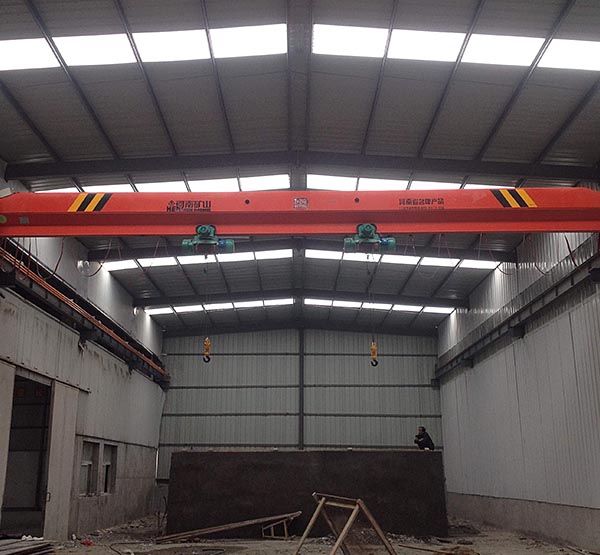

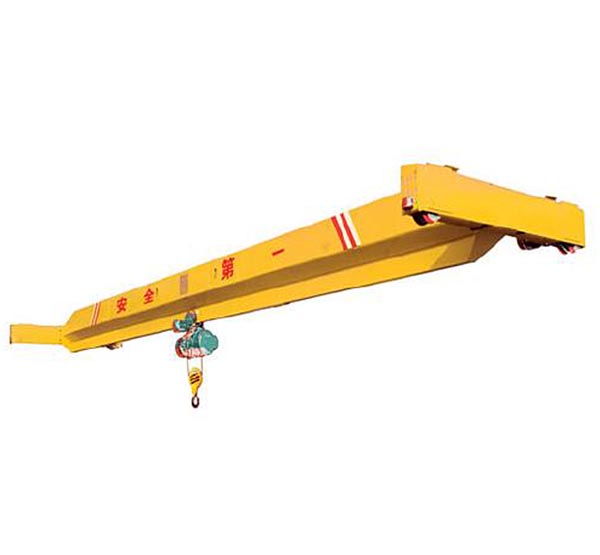

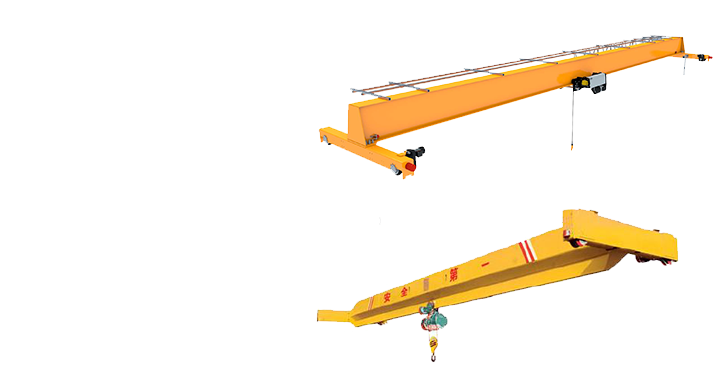

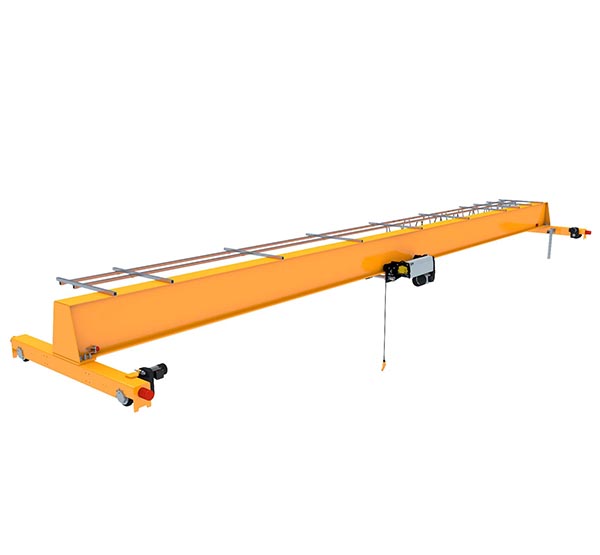

Explosion Proof Single Girder Overhead Crane Brief Introduction:

Explosion proof single girder overhead crane is widely used in factories and warehouses where the height from the rail surface to the lower edge of the truss is equal to or shorter than 500mm. This kind of crane is with more strong shell and sealing performance.  Electrical device and motor is with explosion proof equipment. The trolley of explosion proof single girder overhead crane is equipped with a specific electric hoist that features flexible structure; it’s more reliable and safe operation. If you have special demands on the span, our company is able to carry out design and production of custom non-standard explosion proof single girder overhead crane.

Explosion Proof Single Girder Overhead Crane Working Condition:

The working class of explosion proof single girder overhead crane is A3 and A4, its control mode is ground control and wireless remote control. The working temperature which is proper for explosion proof single girder overhead crane is -10°C to +60°C.
Its power source is 3ph, 380V, 50HZ or other under customer requirement.


Explosion Proof Single Girder Overhead Crane Safety Features:

The safeties devices are used in explosion proof single girder overhead crane are as following:
1. Weight overload protection device
2. Top quality long time bearing polyurethane materials buffer
3. Crane traveling limit switch
4. Voltage lower protection function
5. Emergency stop system
6. Current overloads protection system and so on
