Wall-Travelling Jib Crane

capacity(t): 1-5

lifting height(m): 0-10

working class: A3

power supply: 380v-50Hz-3p

Slewing Angel: 0°-180°

EMAIL ME CHAT NOW OUR SKYPE WHATS APP

Share With:
Product Introduction

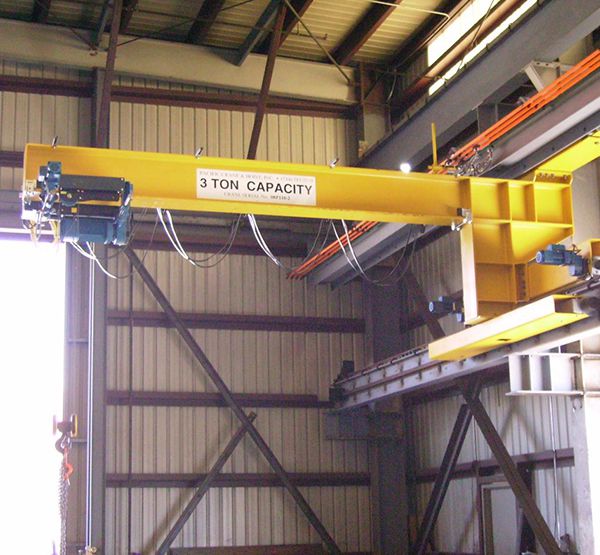

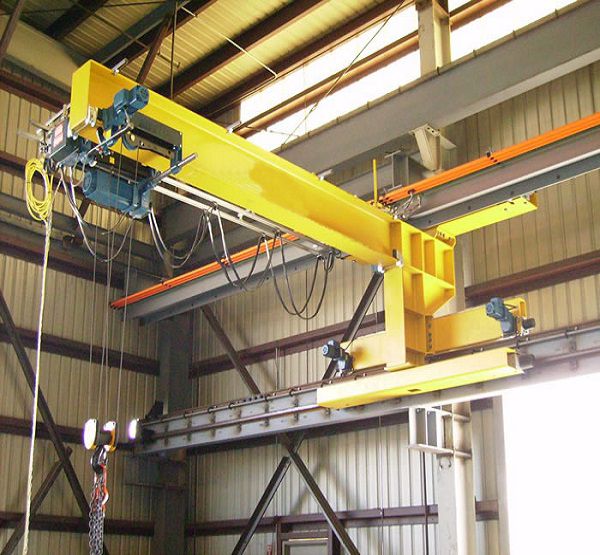

Wall-Traveling Jib Cranes provide long lateral movement of materials without taking up floor space or interfering with large overhead cranes. Wall-traveling jibs increase overall plant productivity by quickly handling smaller lifts.
You can cover an entire series of workstations using one agile wall-traveling crane for (conceivably) the entire length of your building.
Wall-Traveling Jib Cranes are cost-effective, custom engineered solutions that are specifically designed to meet your production needs and building specifications:
WALL-TRAVELING JIB CRANE FEATURES
• Jib boom is fabricated from standard steel beam.
• End trucks are constructed from channel beam frames and resist twisting.
• Top-running end carriers include double-flanged crane wheels made from forged steel for long service life.
• Crane drive has a squirrel cage motor with double-reduction spur gear reducer.
• Hoist can be chain hoist or wire rope hoist.
• A variety of voltage options; 230-3-60, 380-3-50
 Product Features

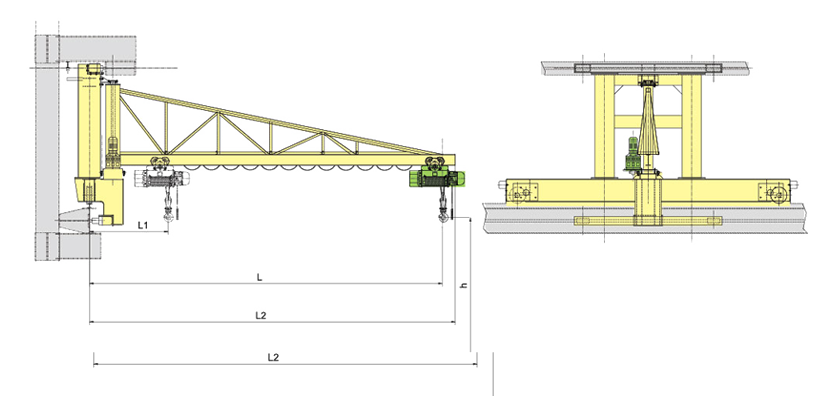

Wall-Travelling Jib Crane Specifications

Lifting Capacity

t

1

2

3

5

Lifting Height

m

5;6.3;8;10;12.5;16;20;30

Max.Validity Cantilever

m

5~10

Min.Validity Cantilever

m

2.5(1.8)

3.2(2.5)

Working System



A3

Speed

Hoisting

m/min

8;    8/0.8

Crab Travelling Speed

m/min

20

Trolley Travelling Speed

m/min

3~30(frequency converter)

Slewing Speed

r/min

0.3~0.7(frequency converter)



Slewing Angel

°

180°

Power Souree



3phase A.C.50Hz 380V
