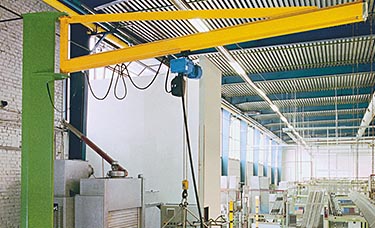

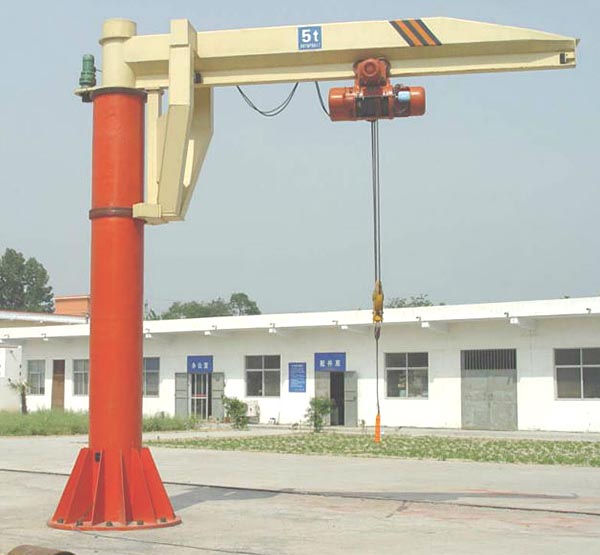

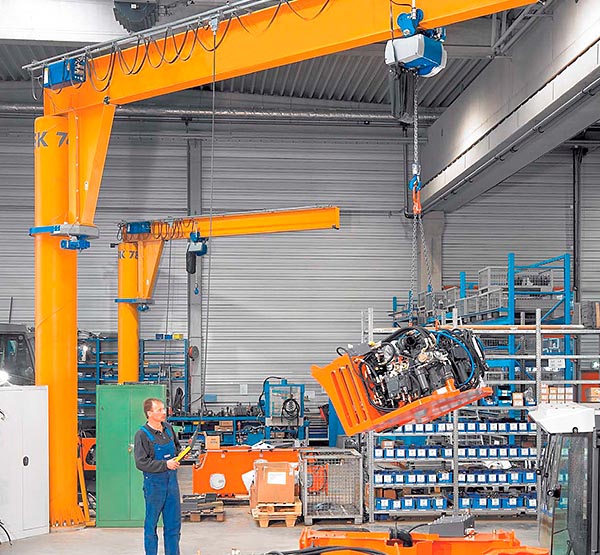

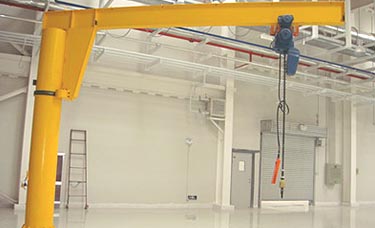

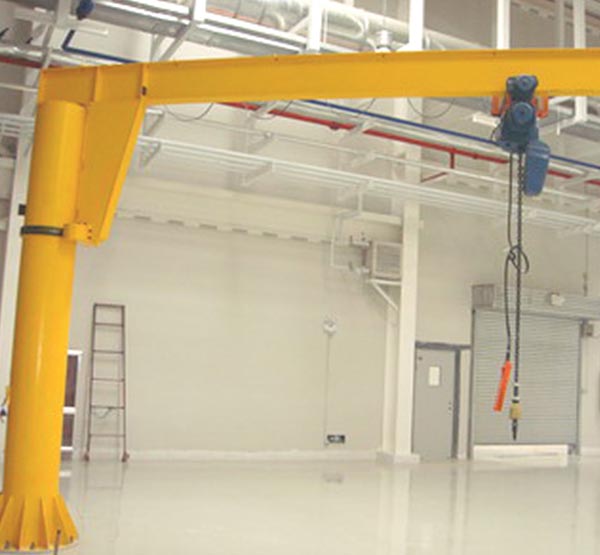

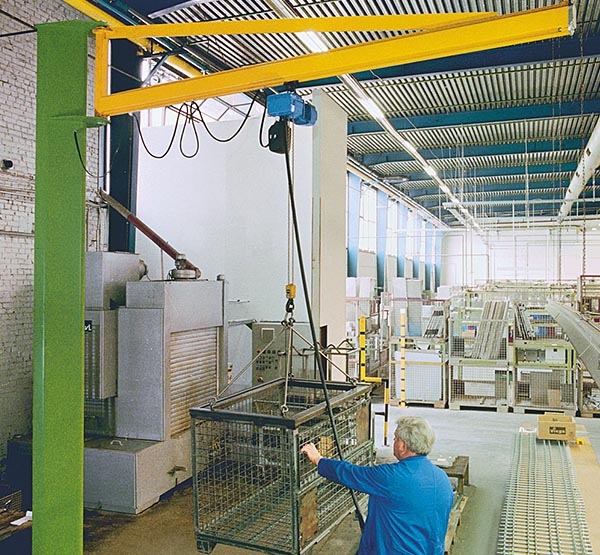

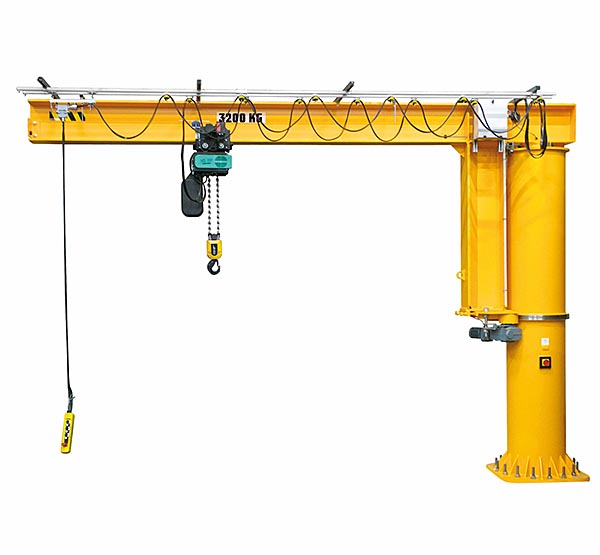

Electric slewing jib crane is a crane which used together with model CD electric hoist and MD electric hoist, the electric slewing jib crane consist of the column, rotating arm, rotary drive device and electric hoist, the bottom of electric slewing jib crane column fixed on the concrete foundation by anchor bolt, rotating arm driven by pin gear cycloid reducer, electric hoist of Electric slewing jib crane running on the L-beam of rotating arm as a straight line from left to right and lifting heavy objects.
1. simple structure
2. Little space taking
3. Widely working conditions
4. Convenient and safe operation
5. Flexible 360 degree rotation which suitable for fixed
location of wharf, storage, assembling workshop and foundry
6. Reasonable design
1. Power supply of Electric slewing jib crane:
380V-50HZ-3 phase or as your request;
2. The altitude of Electric slewing jib crane installation
location is not exceeding 2000m;
3. Electric slewing jib crane working grade: A3;
4. No flammable, explosive and the strong caustic gas;
5. Electric slewing jib crane is prohibited to lift molten
metal, toxic substances and flammable items.
Capacity/Lifting Weight | T | 0.25 | 0.5 | 1 | 2 | 3 | 5 | |
Type | BZD0.25 | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 | ||
Turning Radius | Degree | 360 | 360 | 360 | 360 | 360 | 360 | |
Rotate Mode | Electricity | |||||||
Lifting Speed | m/min | Standard | 4/10/8 | 5/10/8 | 5/8 | 4/8 | 8 | 8 |
Special | 1/2.5/0.8 | 1.25/2.5 | 1.25/2/0.8 | 1/0.8 | 0.8 | 0.8 | ||
Maximum Swing Radius | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
Minimum Swing Radius | mm | 1100 | 1250 | 1300 | 1300 | 1200 | 1100 | |
Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | 4000 | 4000 | |
Travelling Speed | m/min | 14/20 | 14/21 | 14/22 | 14/23 | 20 | 20 | |
Height | mm | 3650 | 3900 | 4100 | 4230 | 5500 | 5750 | |
width | mm | 3340 | 3363 | 3400 | 3415 | 4450 | 4600 | |
Self-weight | KG | 950 | 1100 | 1800 | 2100 | 3500 | 4500 | |
Rotating Speed | R/min | 0.7 | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 |
