European Wire Ripe Electric Hoist

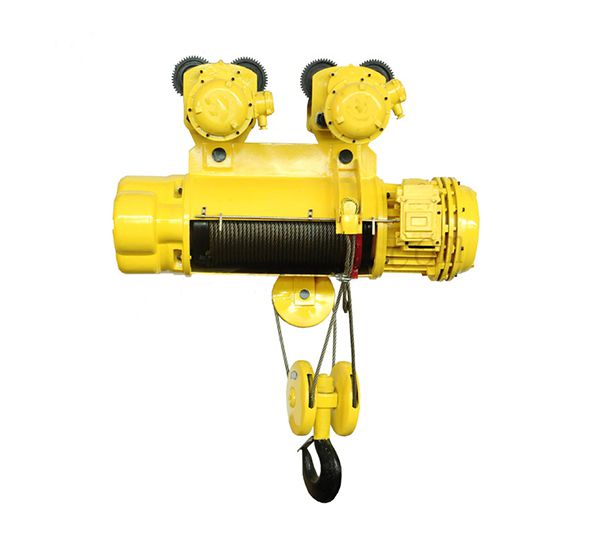

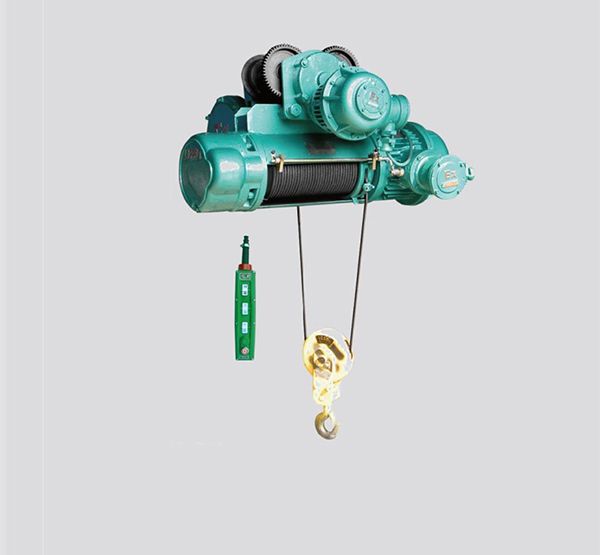

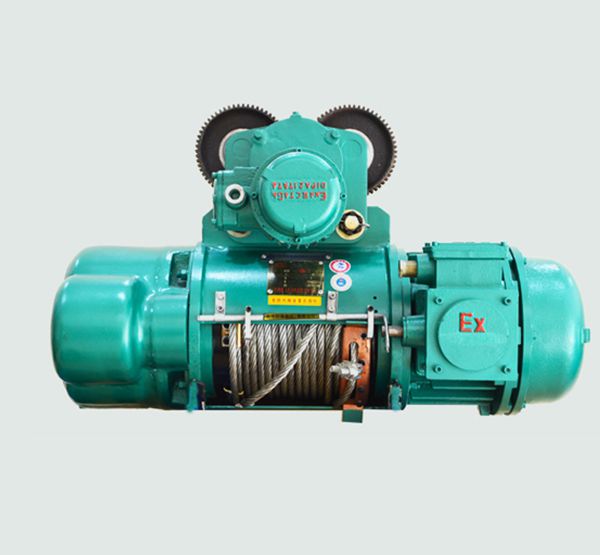

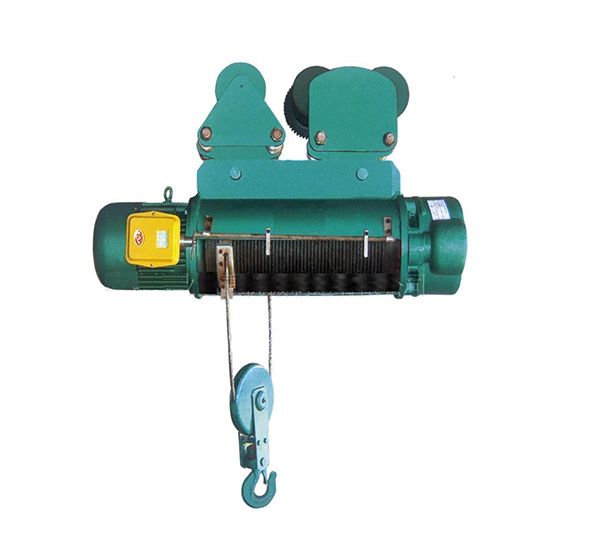

Explosion Proof Wire Rope Hoist

capacity(t): 1－32

lifting height(m): 6-30

working class: A3

power supply: 380v-50Hz-3p

Share With:

Product Introduction
Explosion proof wire rope hoist is intended to operate in an explosion hazardous environment, The electrical equipment included in these goods, such as: electric motors, electric appliances panel, control panel, overtravel limit switches, etc., is manufactured in the so called“explosion-proof” execution. It can be used on the monorail crane and double girder crane. They are extremely reliable and have a long-average service life for hazardous atmospheres in chemical and petrochemical factory, gas power plants, oil refineries, waste water treatment plants, paint shops etc.
Standard Specification
Phase: 3 phase
Lifting Capacity: 3~20 ton *Customization Welcomed
Motor Insulation: F Class with thermal protection
Load Test: 120% of the rated capacity

Product Parameters

Type	BCD(HB)	BCD(HB)	BCD(HB)	BCD(HB)	BCD(HB)	BCD(HB)
Type	0.5t	1t	2t	3t	5t	10t
Capacity	0.5	1	2	3	5	10
Lifting Speed（m/min）	8	8	8	8	8	8
Lifting Height(m)	2006/9/12	6/9/12/18/24/30	6/9/12/18/24/30	6/9/12/18/24/30	6/9/12/18/24/30	6/9/12/18/24/30
Travelling Speed（m/min)	20	20	20	20	20	20
I-Beam Type	16-28b	16-28b	20a-32c	20a-32c	25a-63c	25a-63c
