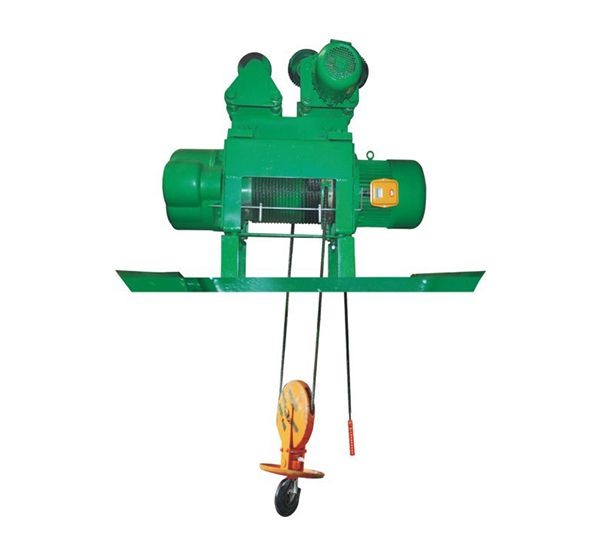

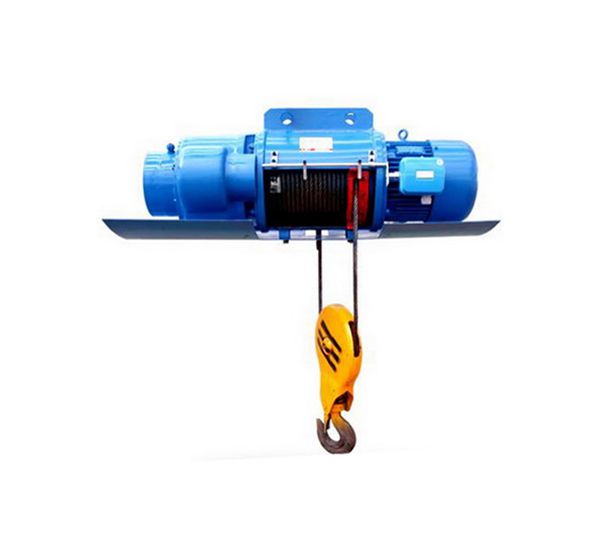

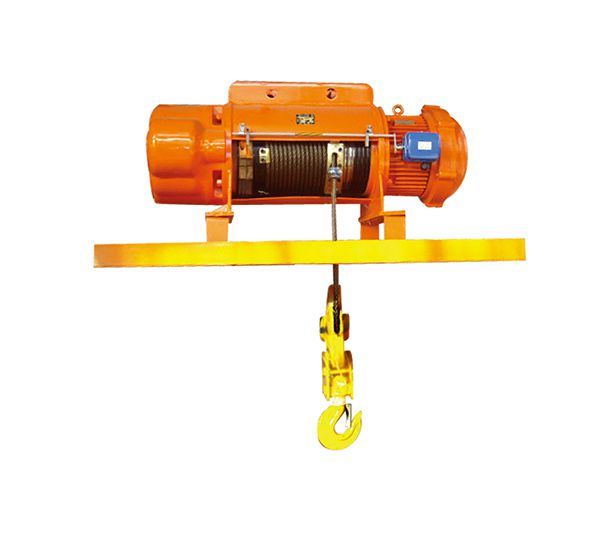

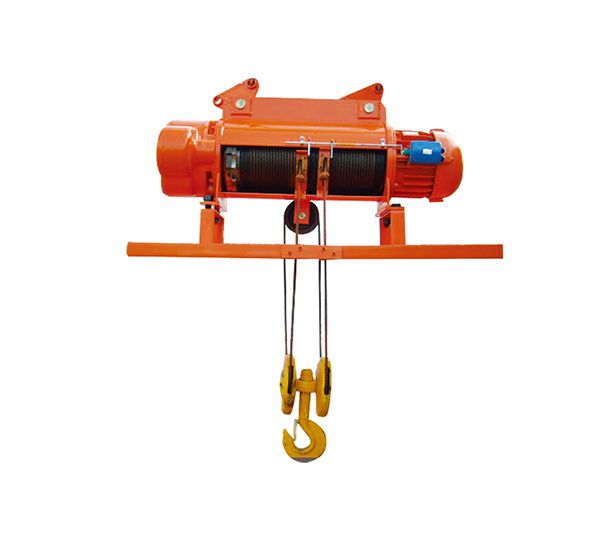

Electric Metallurgy Hoist

capacity(t): 5－32

lifting height(m): 6-30

working class: A5/A6/A7

power supply: 380v-50Hz-3p

Share With:

Product Introduction
Wire rope electric metallurgy hoist which can be mounted on single beam,bridge,gantry and jib cranes,with slight modification,it can also be used as a winch. It is widely used in factories,mines,harbours,warehouses,cargo storage areas and shops,essential in raising working efficiency and improving working conditions.
Electric hoist has only one normal speed,which can satisfy normal application,Model MD electric hoist provides two speeds;normal speed and low speed. At a low speed,it can do precise loading and unloading,mounding of sand box,maintenance of machine tools,etc. Thus model MD electric hoist is more widely used than Model CD

Product Parameters

Item		specification
capacity	t	0.25-32 or as required
Lifting height	m	3-30 or as required
Lifting speed	m/min	0.35/3.5,0.7/7,7,0.8/8 or as required
Traveling speed	m/min	20/30 or as required
Wire rope	type	6x37+1
Wire rope	dia.	3.6/4.7/7.7/11/13/15.5/17.5/22.5/22.5
Working system	FC=25%(intermediate)
Power source	380V50HZ,3-PHASE AC or as required
