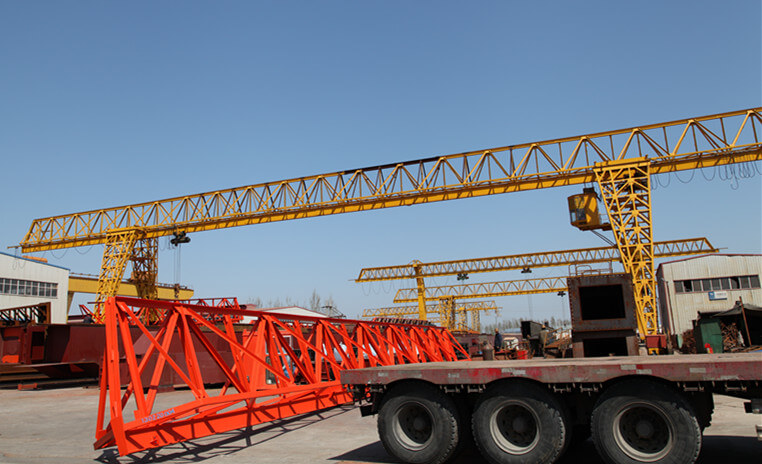

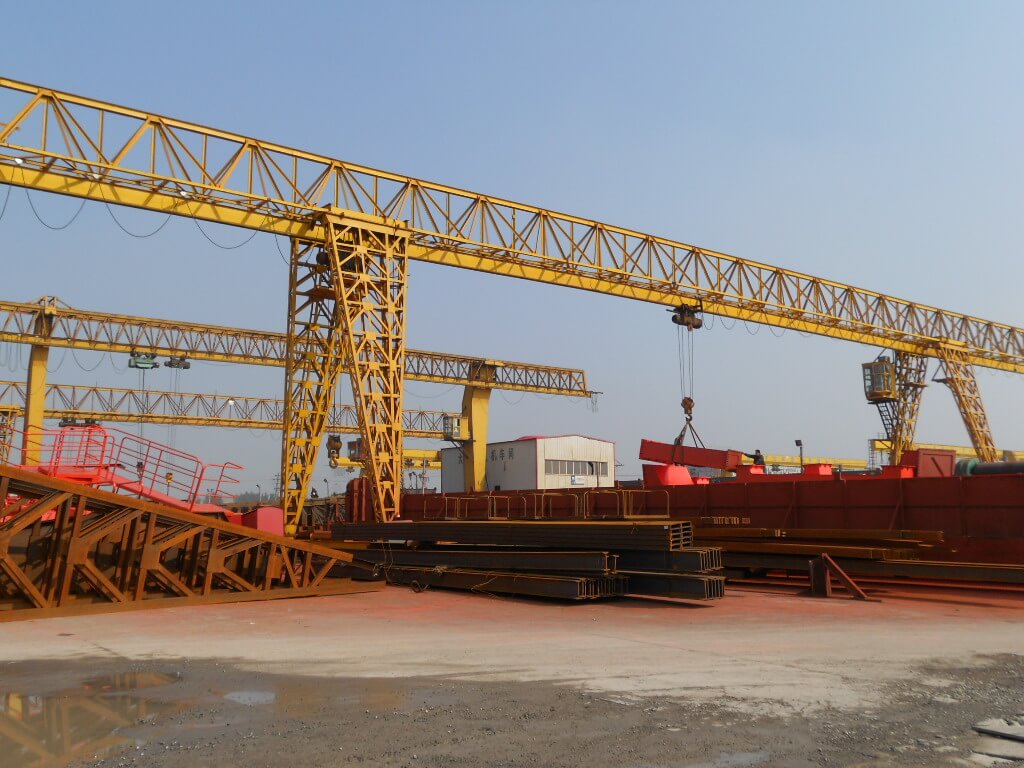

Truss Type Single Beam Gantry Crane

capacity(t): 5-50

lifting height(m): 6-30

working class: A3~A4

power supply: 380v-50Hz-3p

span(m): 10.5-31.5

EMAIL ME CHAT NOW OUR SKYPE WHATS APP

Share With:
Product Introduction
Truss type gantry crane is a kind of common lifting device; it can be designed as single beam or double beam. The working class of single beam gantry crane is mid-light duty, and the double beam gantry crane is heavy duty. Truss type single beam gantry crane is widely used for loading, unloading, lifting and travelling goods in material stocks area, cement plant, granite industry, construction industry, shipping yards, road sides, mines, quarries, railway yards, harbors.  It is especially suitable for the task of loading and unloading long or large bulk goods, such as steel pipes.
Truss Type Single Beam Gantry Crane Features
1.    The working temperature is -20--+40°C.
2.    The power supply is 3-phase A.C. 380V, 50Hz. PLC control is equipped state monitoring control system.
3.    Control methods are cabin control or remote control.
4.    The altitude height of site should be not more than 2000m.
5.    Flammable, explosive and corrosive gas is forbidden in the work environment.
6.    The crane is forbidden to lift fuse, blend deleterious goods and flammable explosive goods.


Truss Type Single Beam Gantry Crane Advantages

1.    Simple and compact structure

2.    Beautiful appearance

3.    Light weight, low cost, and less wastage

4.    Straightforward operation and easy maintenance

5.    Steady performance and safety.



Truss Type Single Beam Gantry Crane Safety Features

1. Overload protection.

2. Main lifting motor with thermal protection.

3. Hooks with latch.

4. Rubber buffers.

5. Protective earthing.

6. Crane lifting limit switch and travel end limit switch.

7. Emergency switch can stop all movement when any dangerous happened.

8. Sub-assemblies characteristic are tested before assembly.

9. All cranes must be pre-assembled and tested before leaving factory and offer the certification of test.
