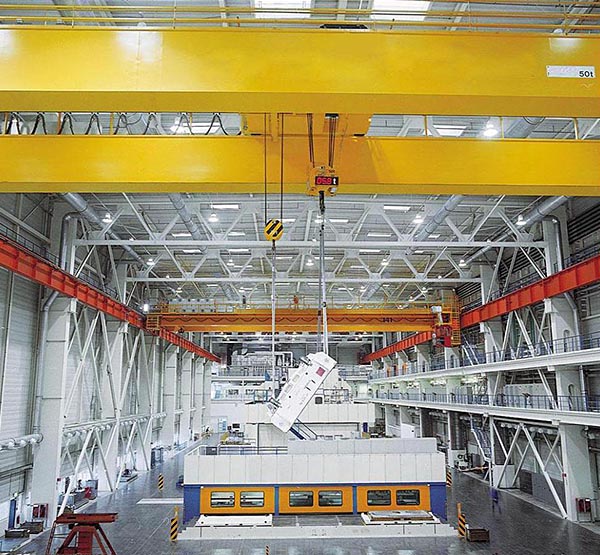

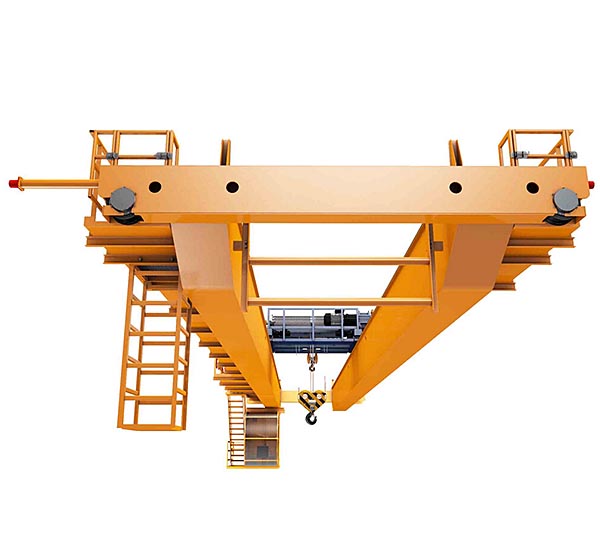

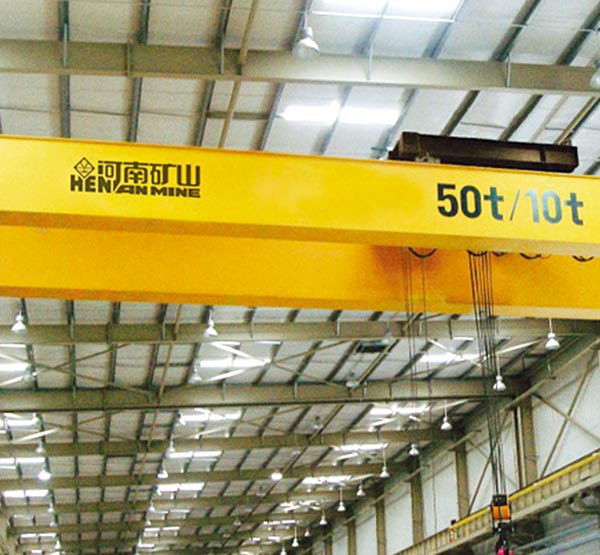

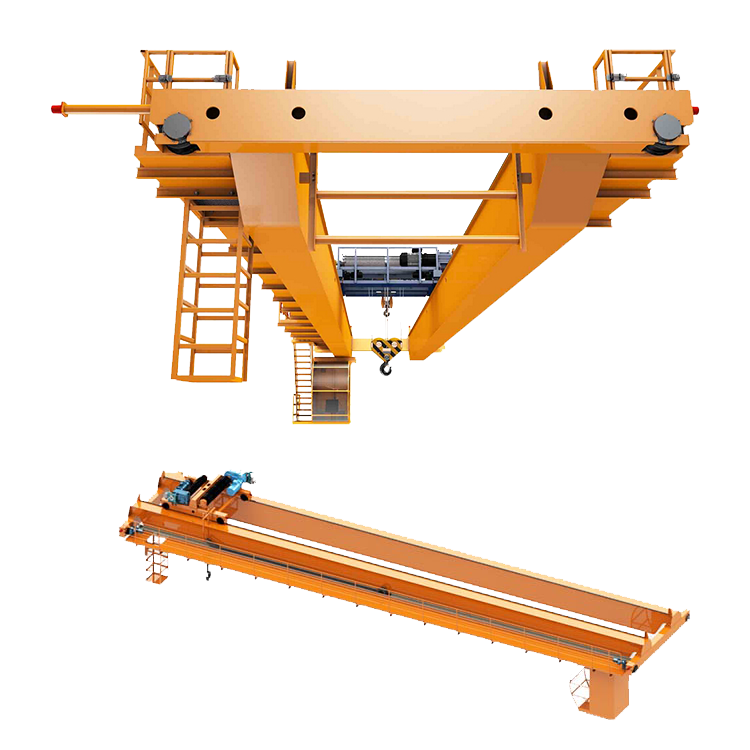

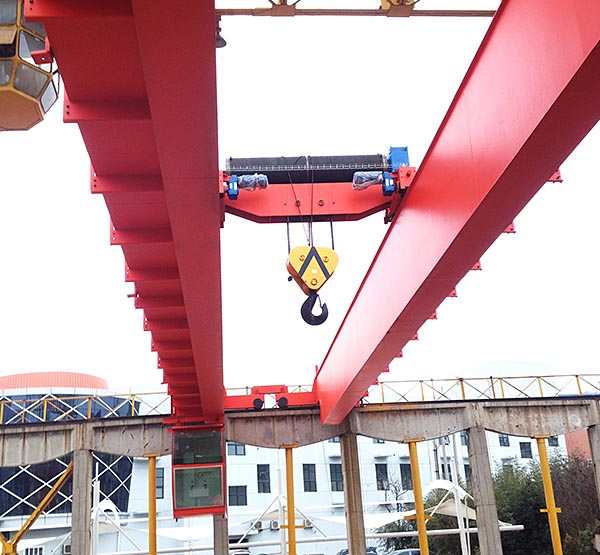

Light Weight European Double Girder Overhead Crane

Crane capacity(t): 5-500

span(m): 10.5-31.5

lifting height(m): 6-30

working class: A5/FEM 2M

power supply: 380v-50Hz-3p

EMAIL ME CHAT NOW OUR SKYPE WHATS APP

Share With:

catalogue download

Instructions for Selecting Type Of Light Weight European Double Girder Overhead:

1. This series tables of product only list the general crane with basic specifications, including the standard span at working level A5 (FEM 2m) and indoor crane without auxiliary hook. Customers can make relevant requirements according to their demands.

2. This series can add to auxiliary hoisting mechanism, and also the speed doubler if run with light load. Ordinarily, the setting of the main and auxiliary should be 4:1, which also be set in accordance with requirements of customers. It will increase the total weight and wheel pressure if adding to auxiliary hook.

3. Dimensions, weight and wheel pressure in table will be reference for ordering of customers. If requirements of customers get changed, such as some changes occurred to working level, speed and lifting height, the relevant parameters, dimensions, weight and wheel pressure will also get changed. The actual parameters, quality and wheel pressure should subject to the requirements in contract.

4. Lifting speed, speed of crane and trolley traveling listed in table are standard values, which can be correspondingly regulated according to demands of users.

5. Technical parameters and dimensions would be changed as with improvement or upgrade of technology. Please contact with technology department in our company if any questions.




 Specification:
Lifting load(t) Span(m) lifting height(m) Working group Trolley speed(m/min) Cart speed(m/min) Max.wheel pressure(kn)
5 10.5 6,9,12 A5 2.0-20
3.0-30
2.0-20
3.0-30
35.8
13.5 38.6
16.5 42.4
19.5 45.6
22.5 50.8
25.5 57.8
28.5 64.3
31.5 69.8
10 10.5 6,9,12 A5 2.0-20
3.0-30
2.0-20
3.0-30
60.5
13.5 64.5
16.5 69
19.5 76.3
22.5 80.7
25.5 85.9
28.5 92.6
31.5 100.5
16 10.5 6,9,12 A5 2.0-20
3.0-30
2.0-20
3.0-30
93
13.5 99.7
16.5 106.8
19.5 114.4
22.5 120.8
25.5 128.5
28.5 136.1
31.5 144.3
20 10.5 6,9,12 A5 2.0-20
3.0-30
2.0-20
3.0-30
112
13.5 120
16.5 127
19.5 133.4
22.5 140.2
25.5 74.6
28.5 78.5
31.5 83.4
32 10.5 6,9,12 A5 2.0-20
3.0-30
2.0-20
3.0-30
83.4
13.5 88.6
16.5 93.2
19.5 97.7
22.5 102
25.5 107.8
28.5 112.3
31.5 117.6
50 10.5 6,9,12 A5 2.0-20
3.0-30
2.0-20
3.0-30
136
13.5 142
16.5 149
19.5 153
22.5 160
25.5 167
28.5 173
31.5 180
