Single pole conductor bar

Single Pole Conductor Bar

Share With:

Product Introduction

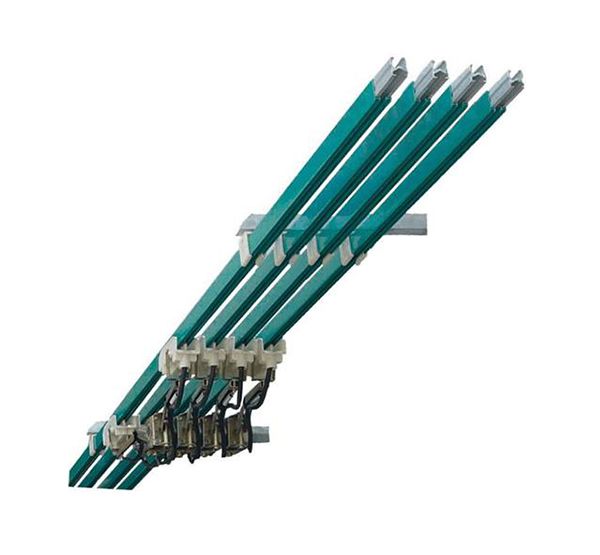

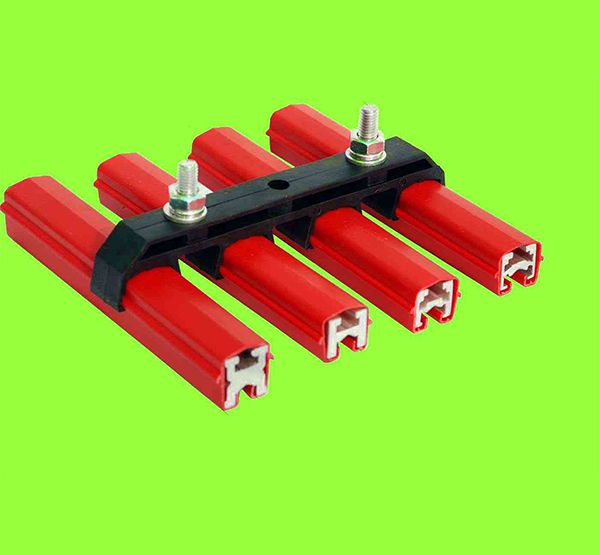

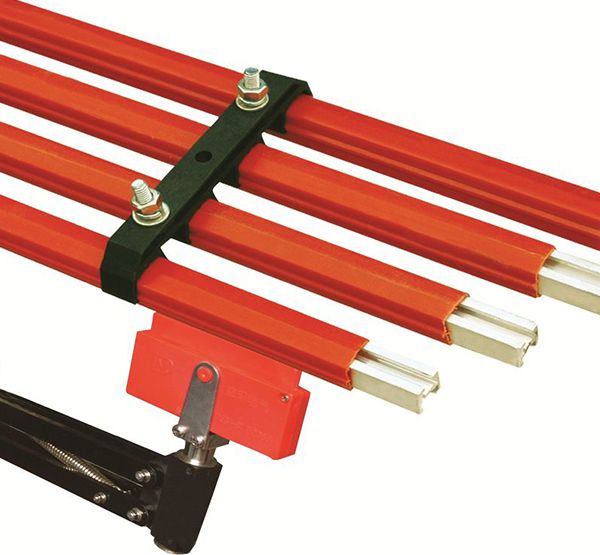

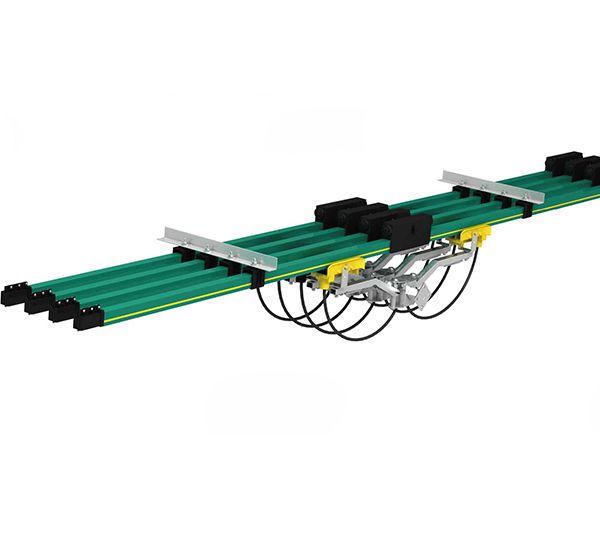

Conductor rail system is a modern power supply system using single –pole insulated conductor rails.
It complies with the latest regulations and provides the electric energy for mobile consumers. The aluminum conductor rail is provided with a proven and patented stainless steel contact surface. Any numbers of poles can be installed vertically or horizontally, on straight or curved systems.
The conductor rail system can be installed indoor or outdoor. For high temperature conditions, a high temperature insulation cover up to +115℃is available, also for low temperature conditions, it could be up to -40℃. The entire conductor rail system is insulated to current safety regulations, it is entirely protected against direct contact. Ground insulation cover is marked yellow-green on one side over the entire length of the rail.

Product Features

I,Conductor Bars use high quality aluminum alloy , plus a special formula by the integrated treatment of extruded, increasing the comprehensive performance of electrical conductors.
II,The geometry of the conductor lines full account of the electrical performance, thermal effects, the best timber and many other factors, so it is not easy to deformed because of the good rigid.
III,Between the stainless steel moldings and aluminum conductors coated with conductive paste, use the special extrusion equipment to ensure that the two metals in close agreement and stability of the conductivity, effectively increase tough degree of the conductor's wear, prevent electrochemical oxidation of the contact surface, prolong the life of the conductor Bars.
IV.Standard Length: 6.0 m, other lengths on request.

Aluminum conductor

Conductor material	Cross section (mm^2)	Nominal current(A)	Leakage-distance (mm)	Resistance (Ω/km)	Weight (kg)
Aluminum	230	320	80	0.153	0.96
Aluminum	285	500	80	0.116	1.13
Aluminum	360	630	80	0.087	1.38
Aluminum	450	800	80	0.067	1.50
Aluminum	550	1000	80	0.058	1.83
Aluminum	600	1250	80	0.046	2.01

Copper conductor

Conductor material	Cross section	Nominal current	Leakage-distance (mm)	Resistance (Ω/km)	Weight (kg)
Copper	230	800	80	0.067	2.43
Copper	300	1000	80	0.058	3.05
Copper	360	1250	80	0.046	3.56
Copper	450	1600	80	0.039	4.37
